Quality Is Not an Accident
Five stages of inspection, SPC-controlled processes and full MES traceability — 99.8% first-pass yield, board after board.
How We Keep Boards Good
Quality is engineered into the process, not inspected in at the end.
Five-Stage Inspection
SPI → AOI → ICT → FCT → X-Ray, every board, every batch. Anything out of spec is caught at the stage it happens.
99.8% First-Pass Yield
SPC keeps the lines under control; rework is the exception, not the routine. Yield data reported per order.
Full Traceability
One board, one code: material batches, placement parameters and reflow profiles archived in MES for 10 years.

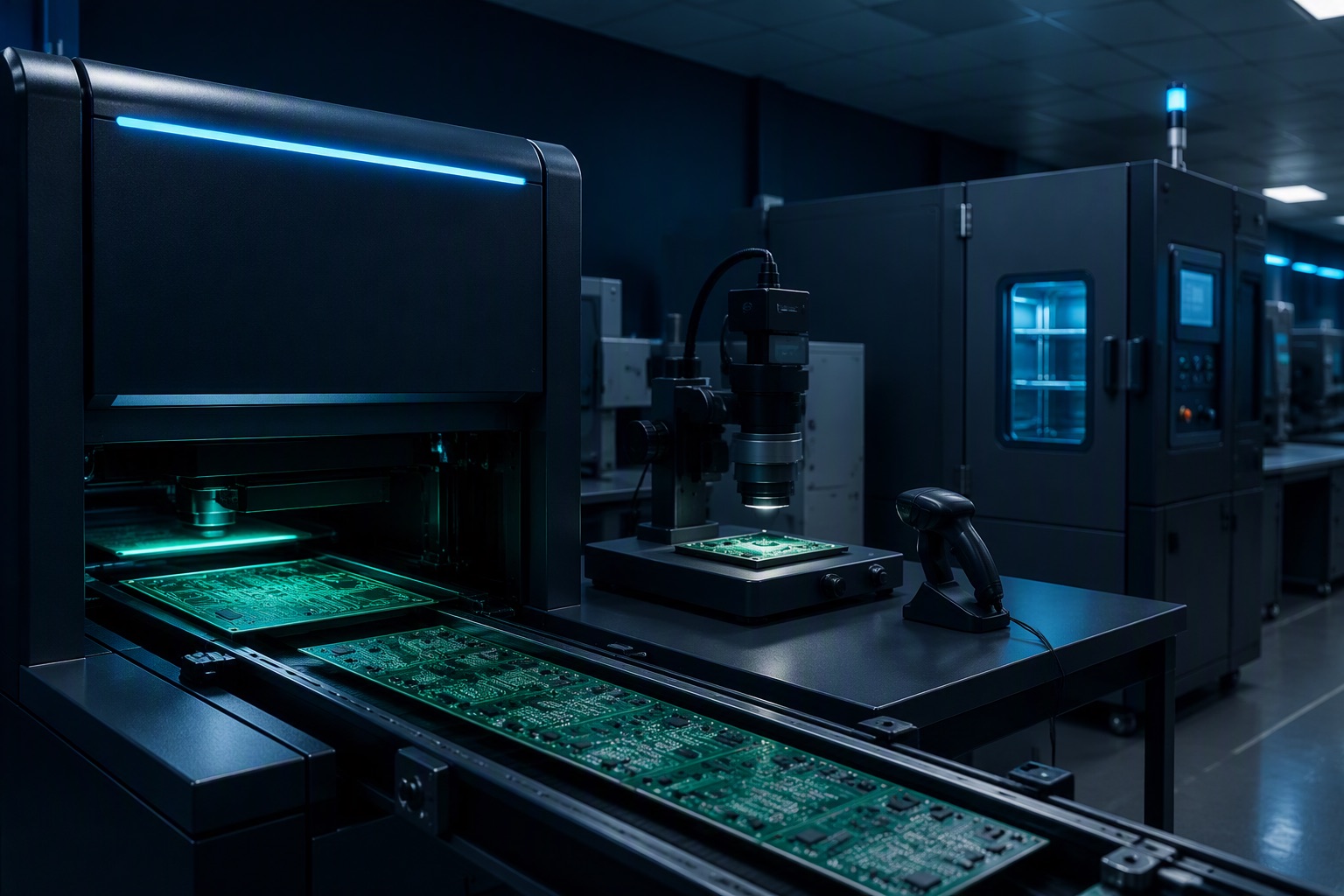

Five Checkpoints on Every Line
Automated inspection machines with human eyes on top — nothing ships on trust alone.
SPI
Solder paste inspection before placement.

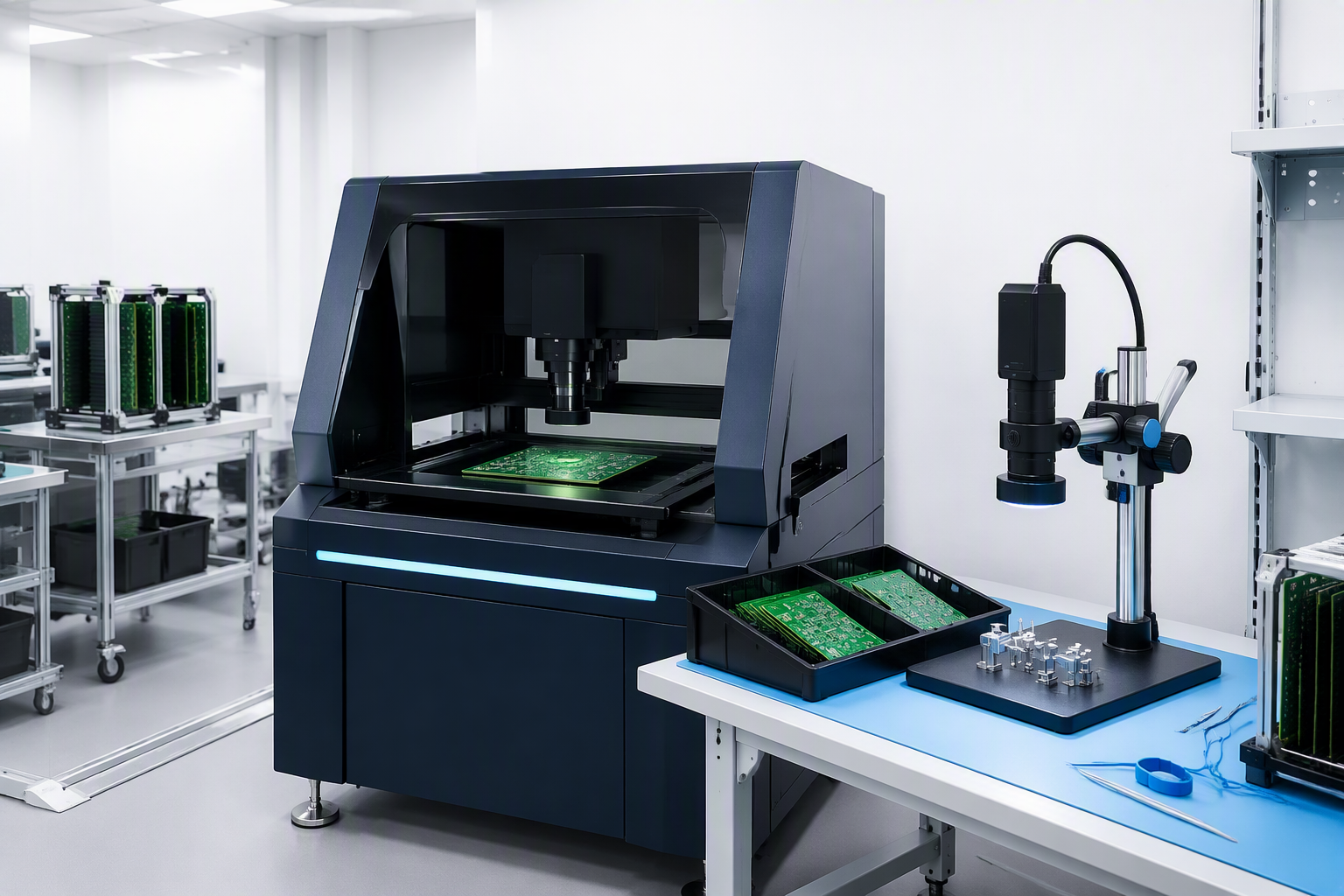

AOI
Post-reflow optical check of each joint.
ICT
In-circuit test for shorts & opens.
FCT
Functional test — firmware & power-on.
X-Ray
BGA & hidden joint inspection.
If It's Not Right, We Fix It
Defects traced to our process are repaired or replaced at our cost — that's the accountability of a one-stop partner.
What you get with every order
- Inspection reports (AOI / ICT / FCT) for the batch
- First-pass yield summary per order
- Certificate of conformance with each shipment
- Returned-goods analysis within 5 working days
Ask us for the latest quality report on any line.
Request Quality Docs →Standards We Build To
Sample certification badges for layout. Actual certificates to be confirmed with our files.
Sample certifications shown for layout — to be confirmed with actual certificates on file. [PLACEHOLDER]
Want to audit our quality system?
Visit the factory or request inspection reports and certificates — we will arrange everything.
